MVM srl Businaro

Grinding Machines for Straight Blades

Grinding machine for linear blades

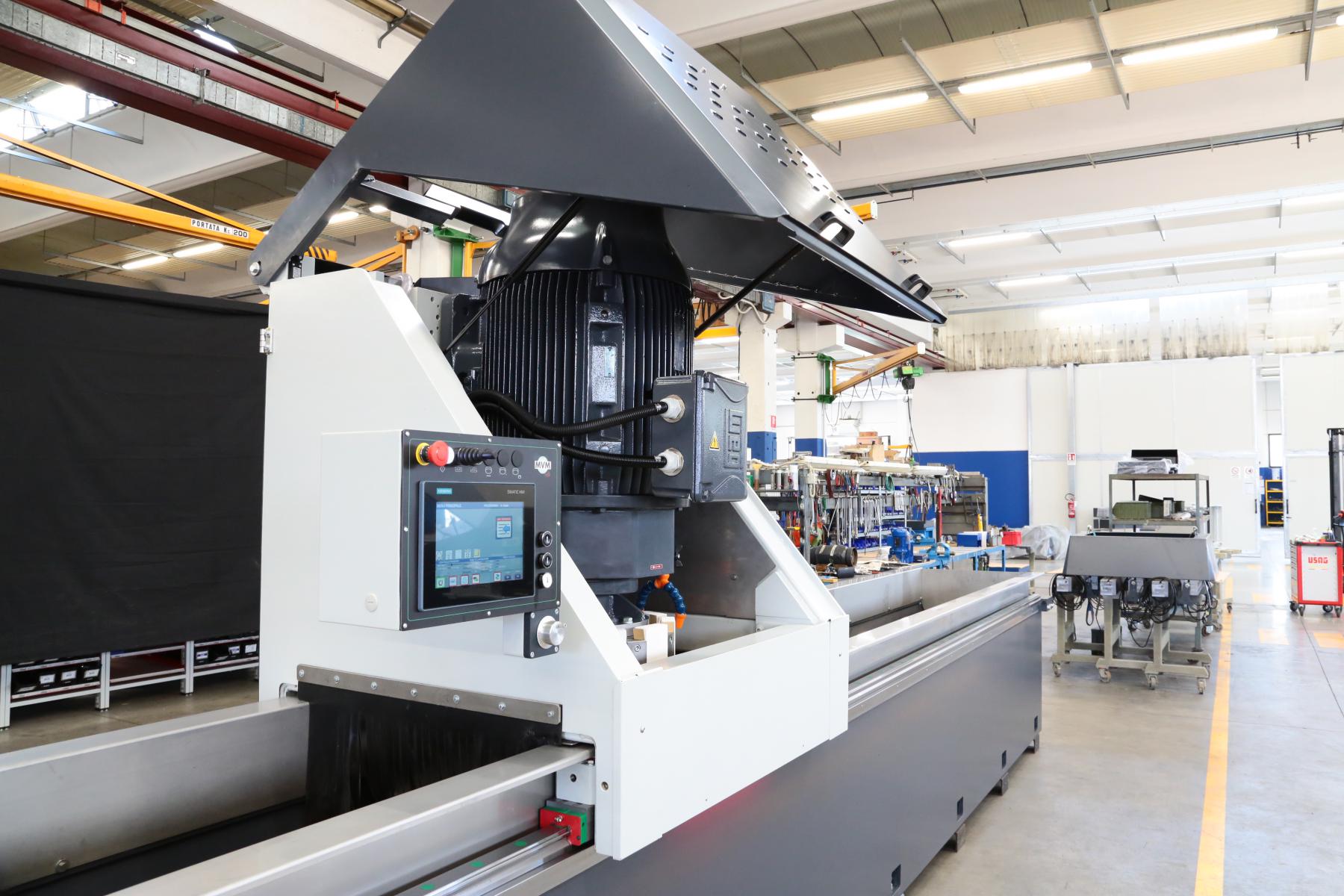

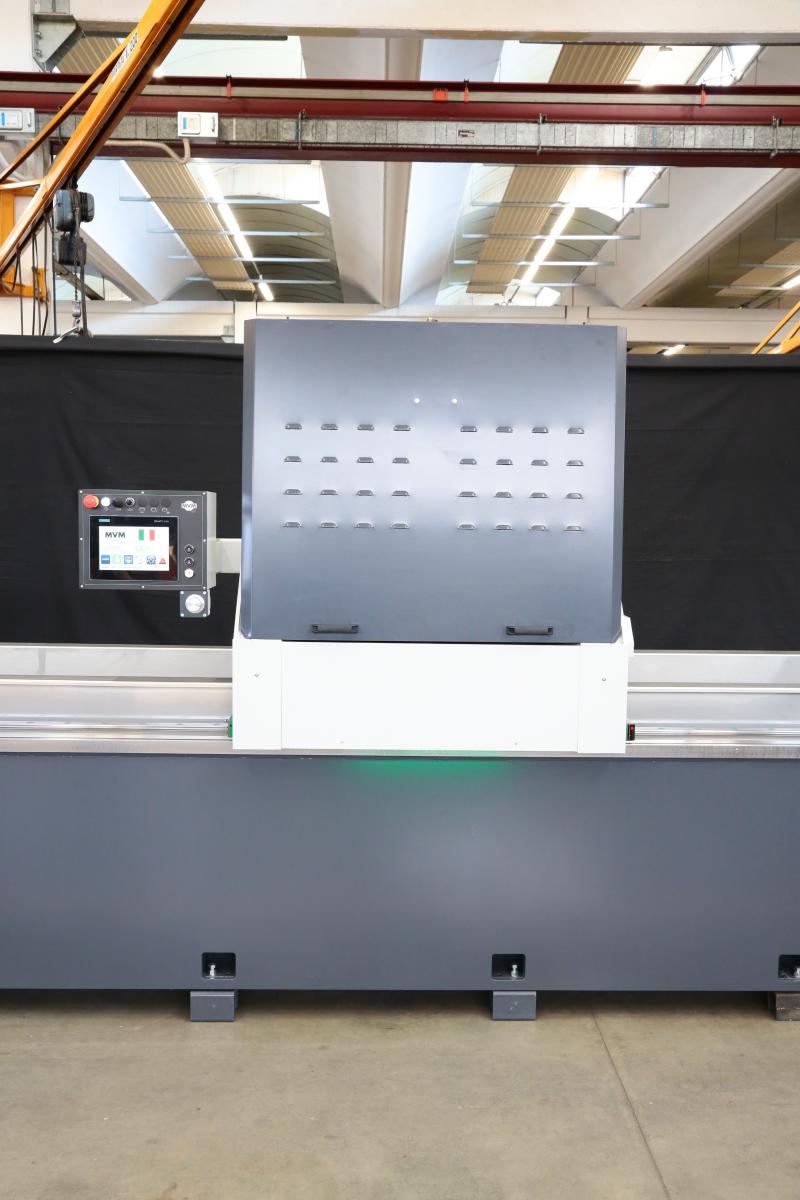

FX 80 Grinding Machine (55 kW)

Grinding machine for linear blades

The FX 80 model, with a working chamber width of 700 mm, is available with working lengths ranging from 1,500 mm to 7,100 mm and beyond when required. This FX80 features a high-power grinding motor (55 kW), which enables the production of large quantities of industrial blades and knives, as well as the surface grinding of large work-pieces. Available with a rotating magnetic table up to 350 mm wide or a fixed magnetic table up to 500 mm wide.


Technical features

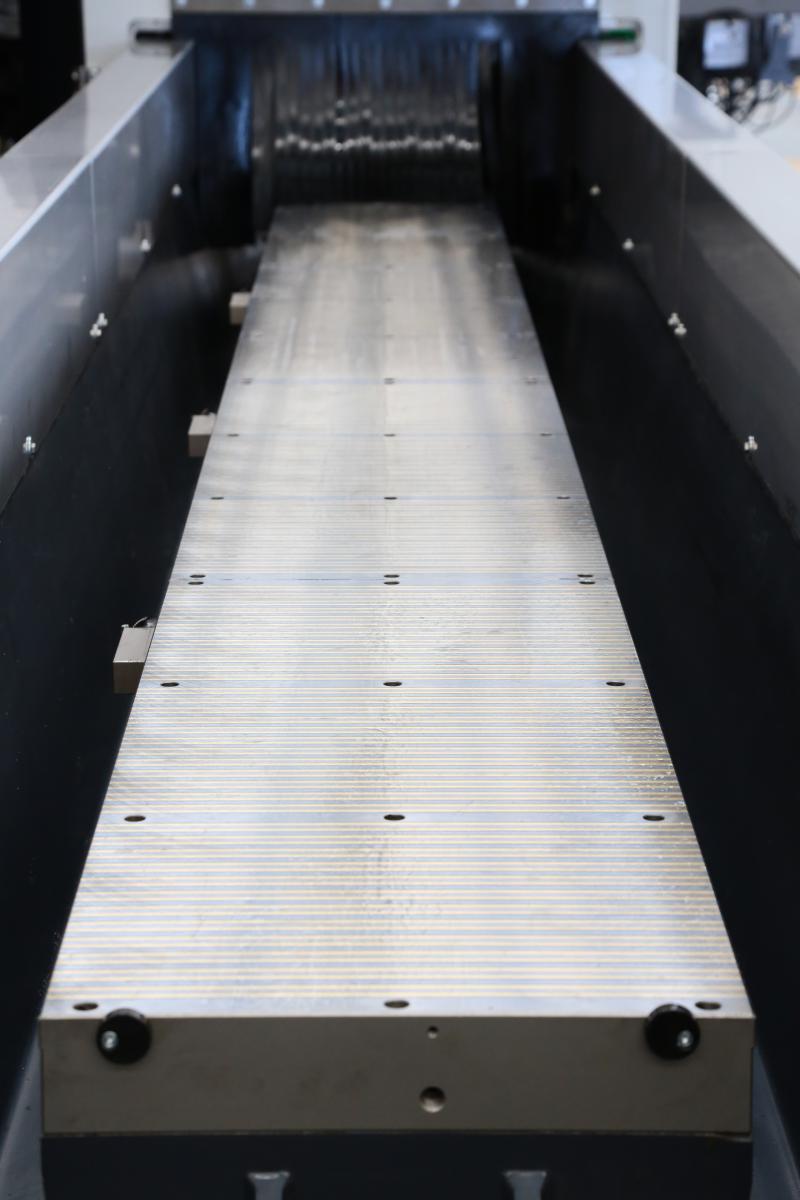

  • Electro-permanent magnetic table, 250 mm wide.

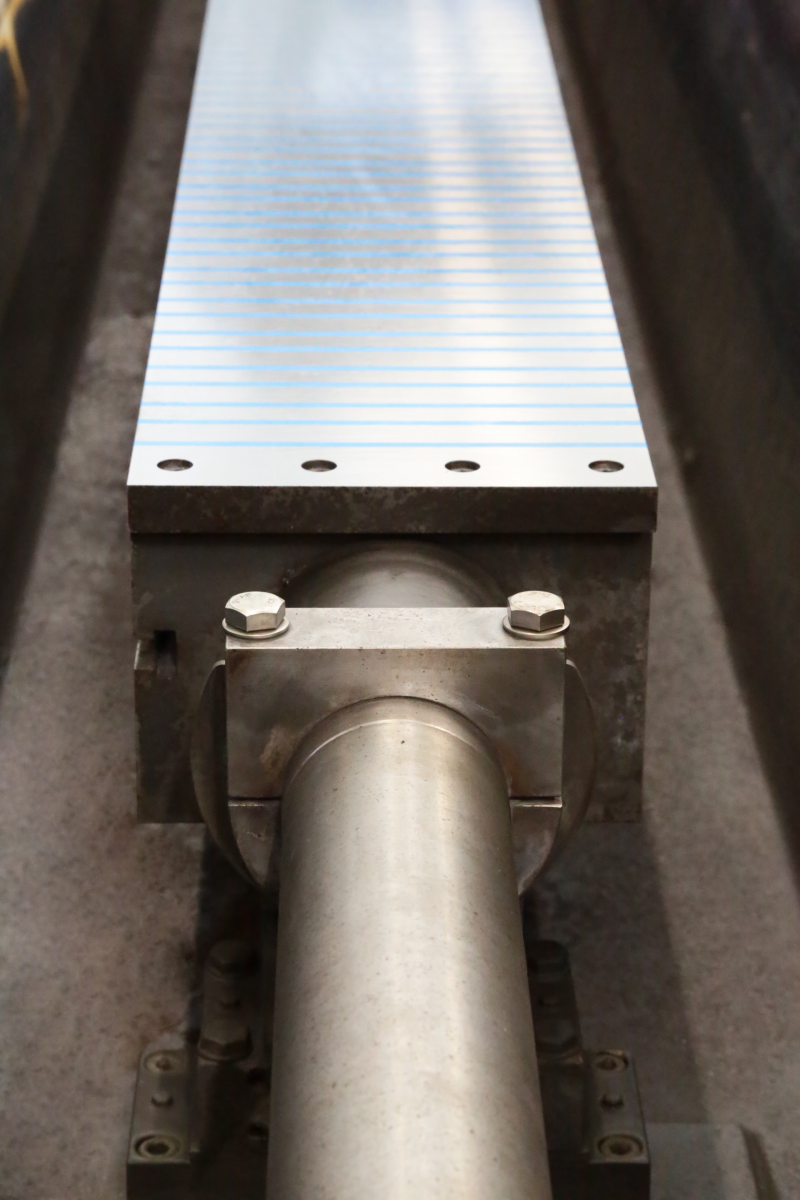

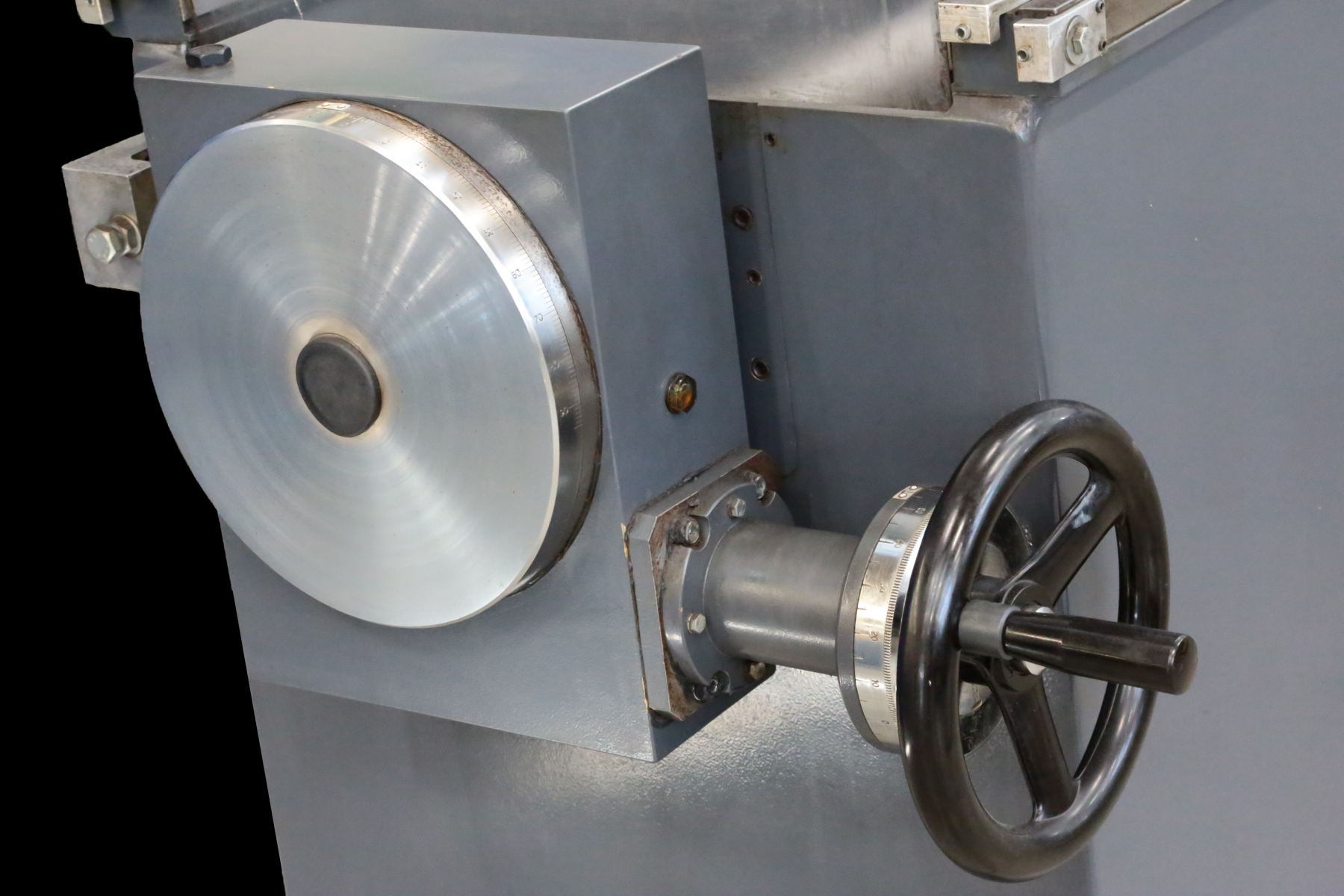

  • Angular divisor for rotating the magnetic table through ±90°.

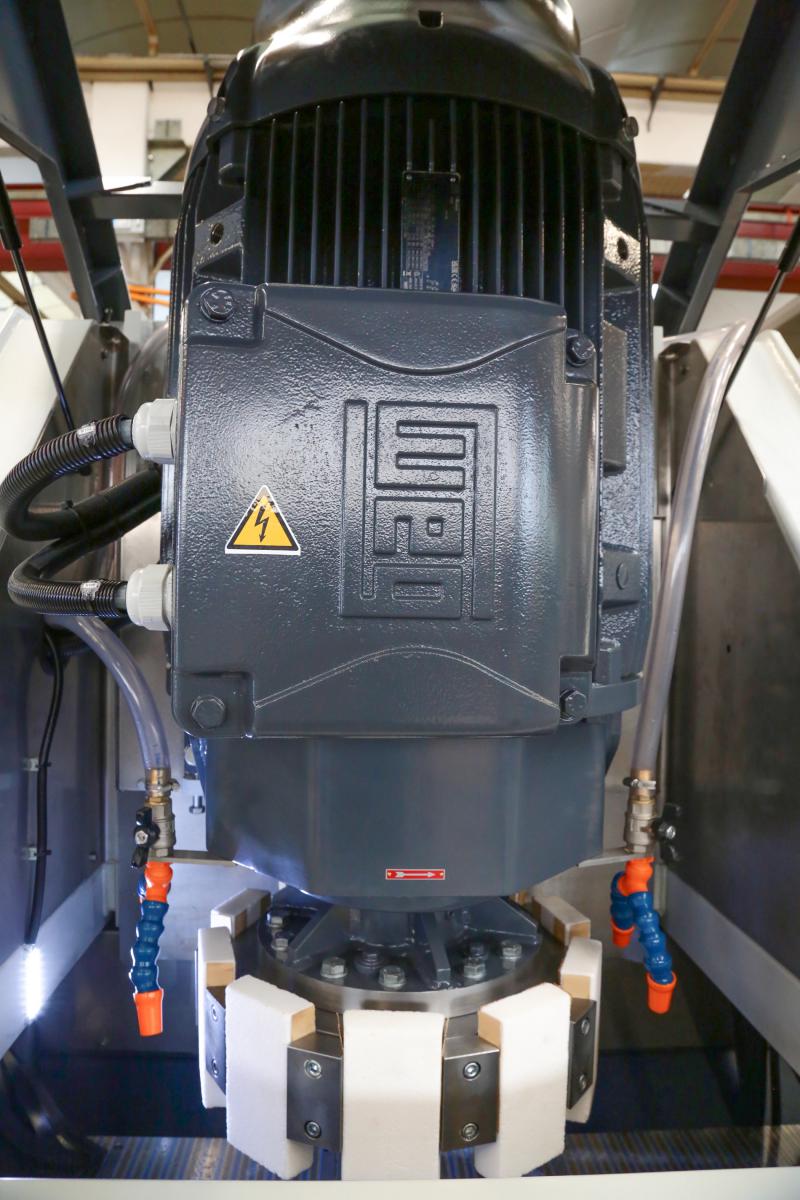

  • 55 kW (75 HP) grinding wheel motor.

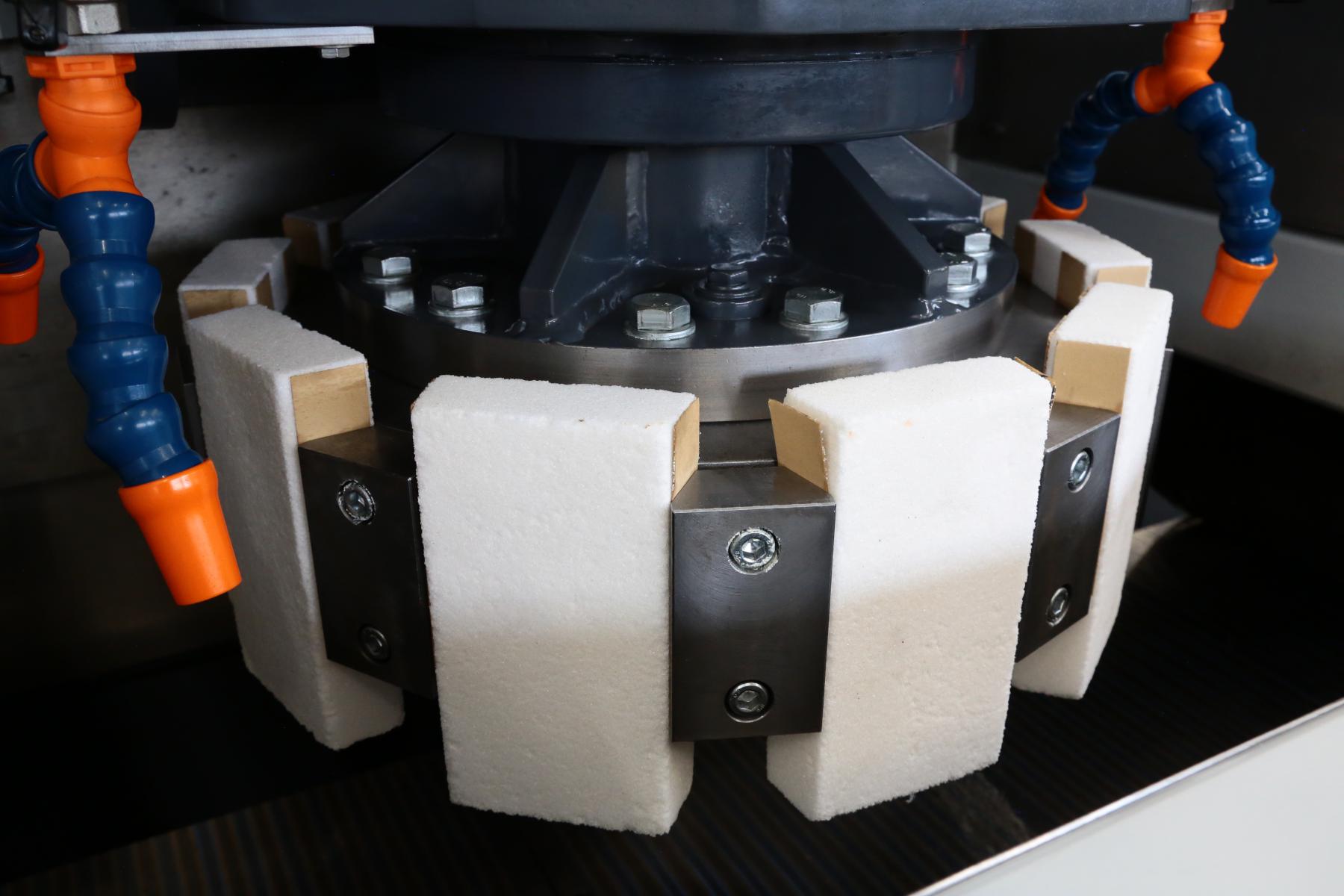

  • Segment grinding wheel with a diameter of Ø450 mm.
  • Variable carriage speed: 1–25 m/min
  • Maximum magnetic grinding wheel table passage: 250 mm
  • Z-axis driven by a recirculating ball screw.

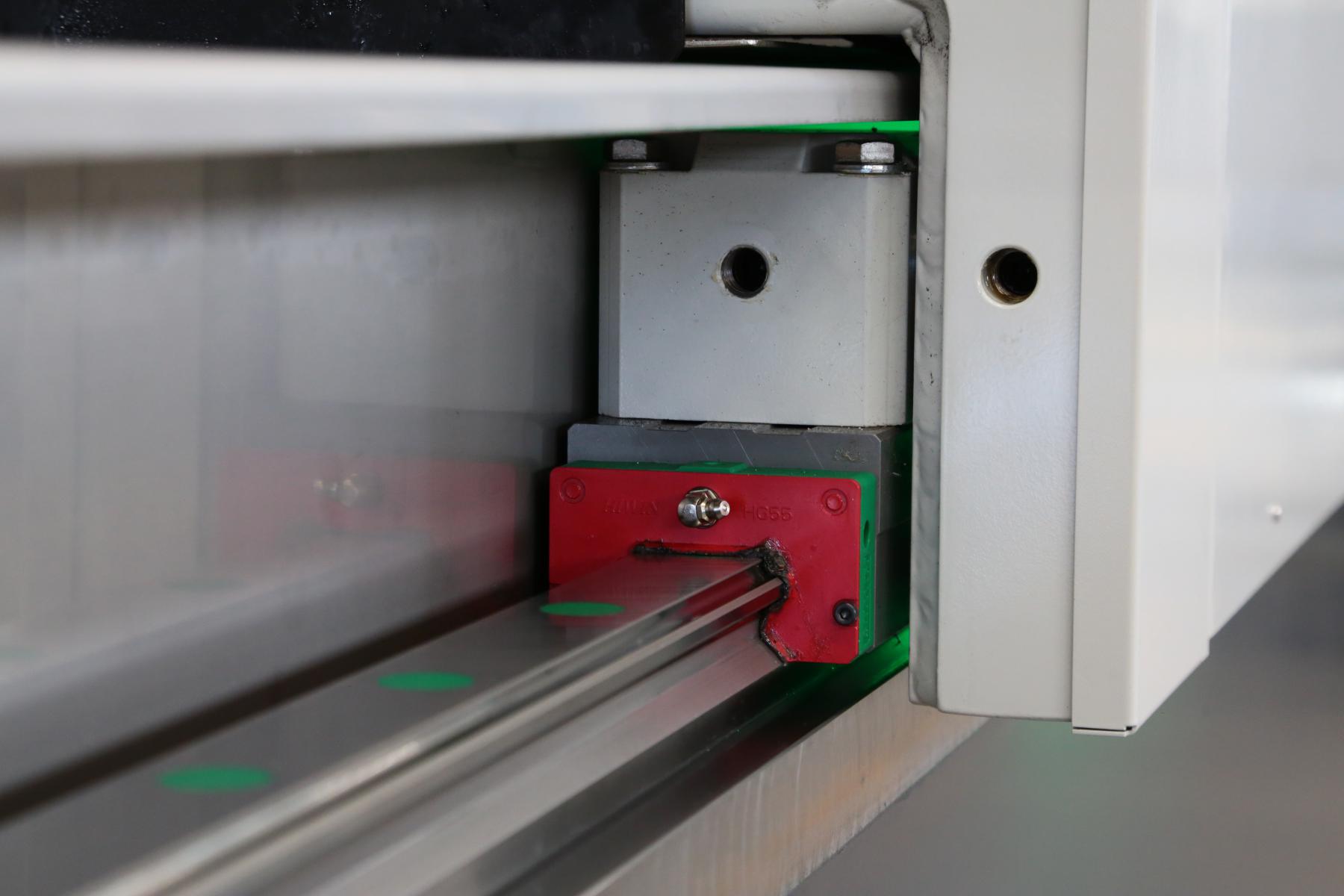

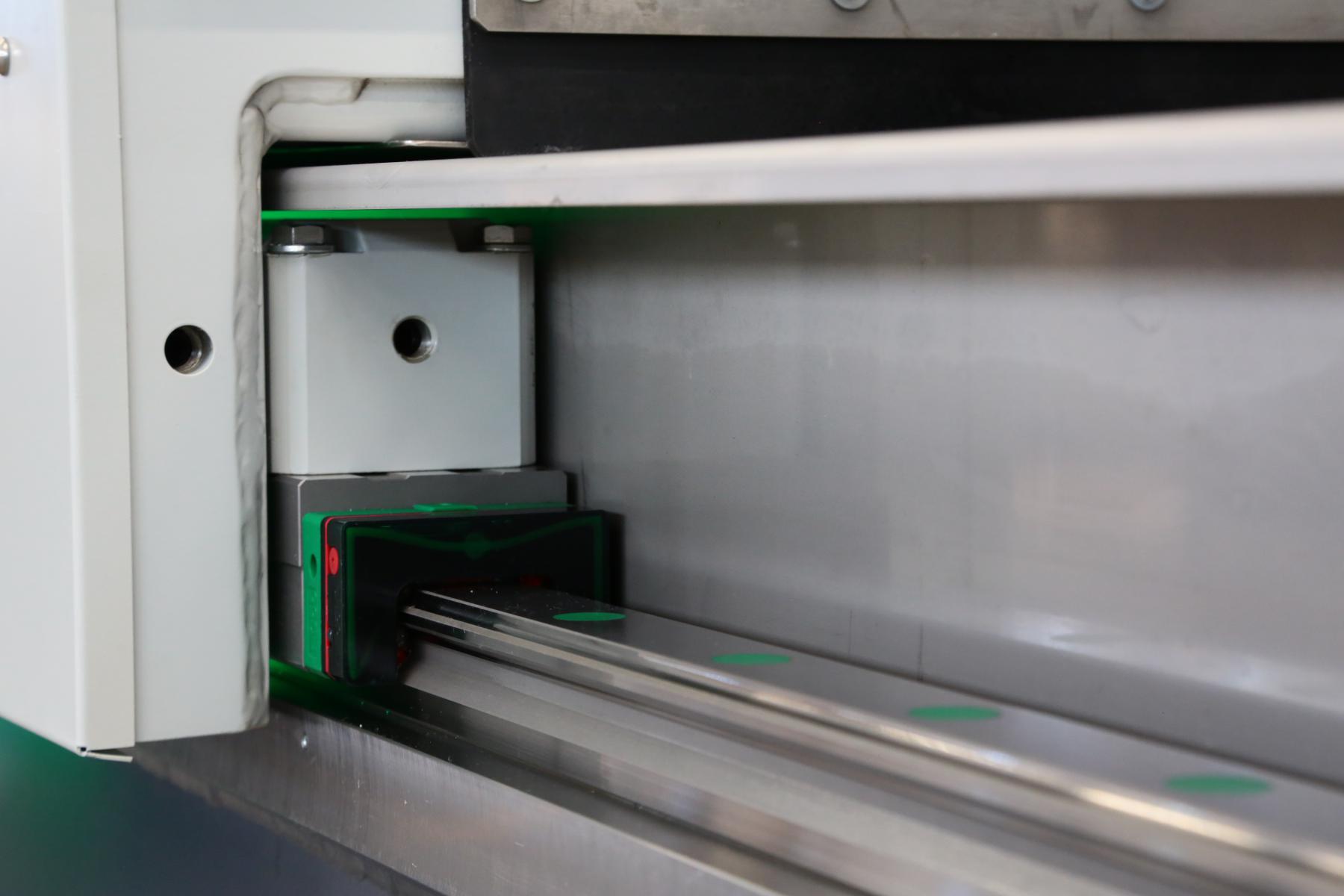

  • Carriage movement on linear guides with recirculating ball bearings, to ensure high precision and smooth movement.

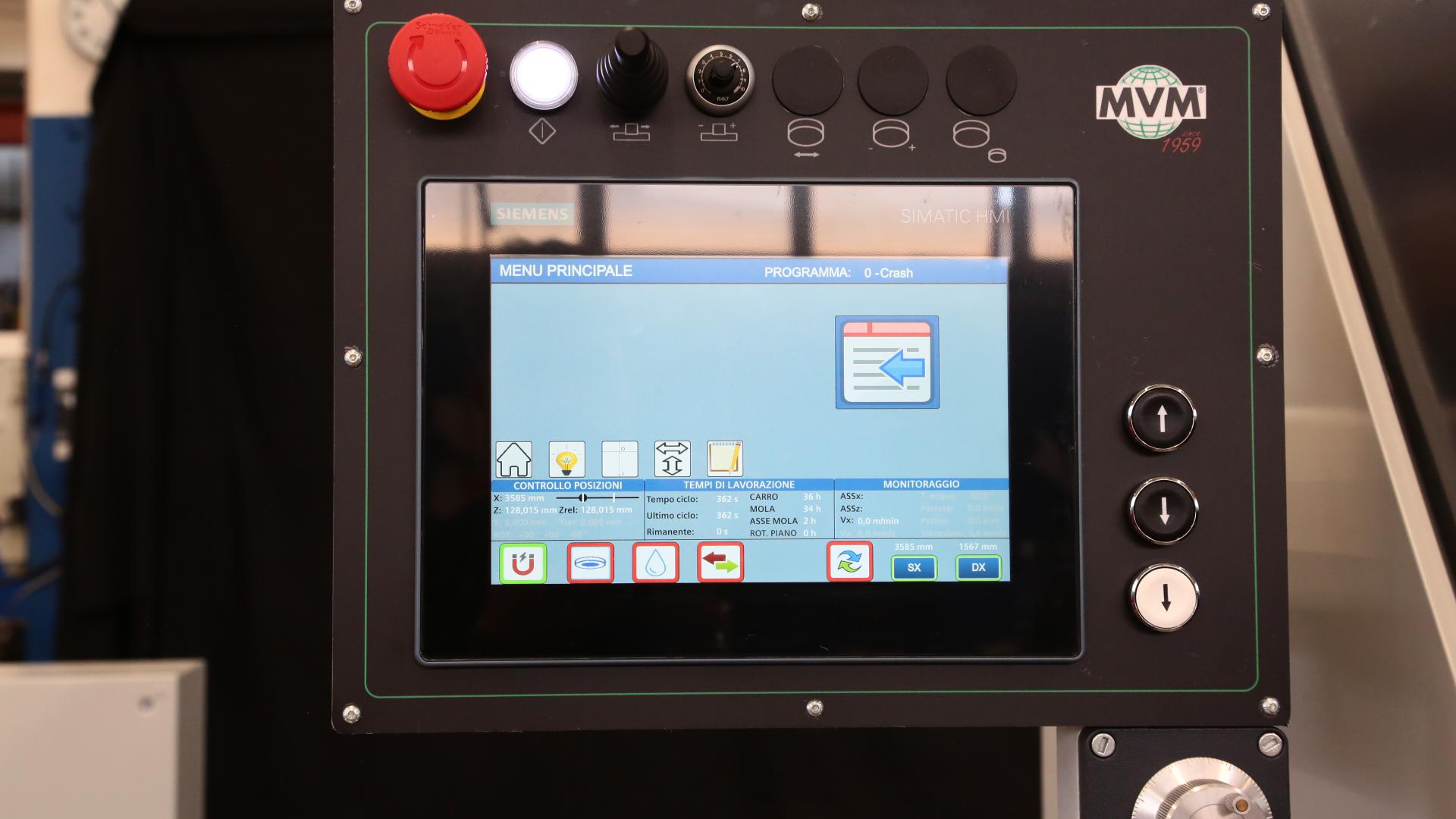

  • Automatic grinding wheel feed with programming of total and partial down-feed via a Siemens PLC with a 7-inch touchscreen panel.
  • Programmable machining cycles including: roughing, finishing and spark-out.
  • Dedicated controls for: rapid grinding wheel ascent, rapid grinding wheel descent, and slow working descent.
  • Grinding wheel axis adjustable from 0° to 3° along the longitudinal axis of the magnetic table.0

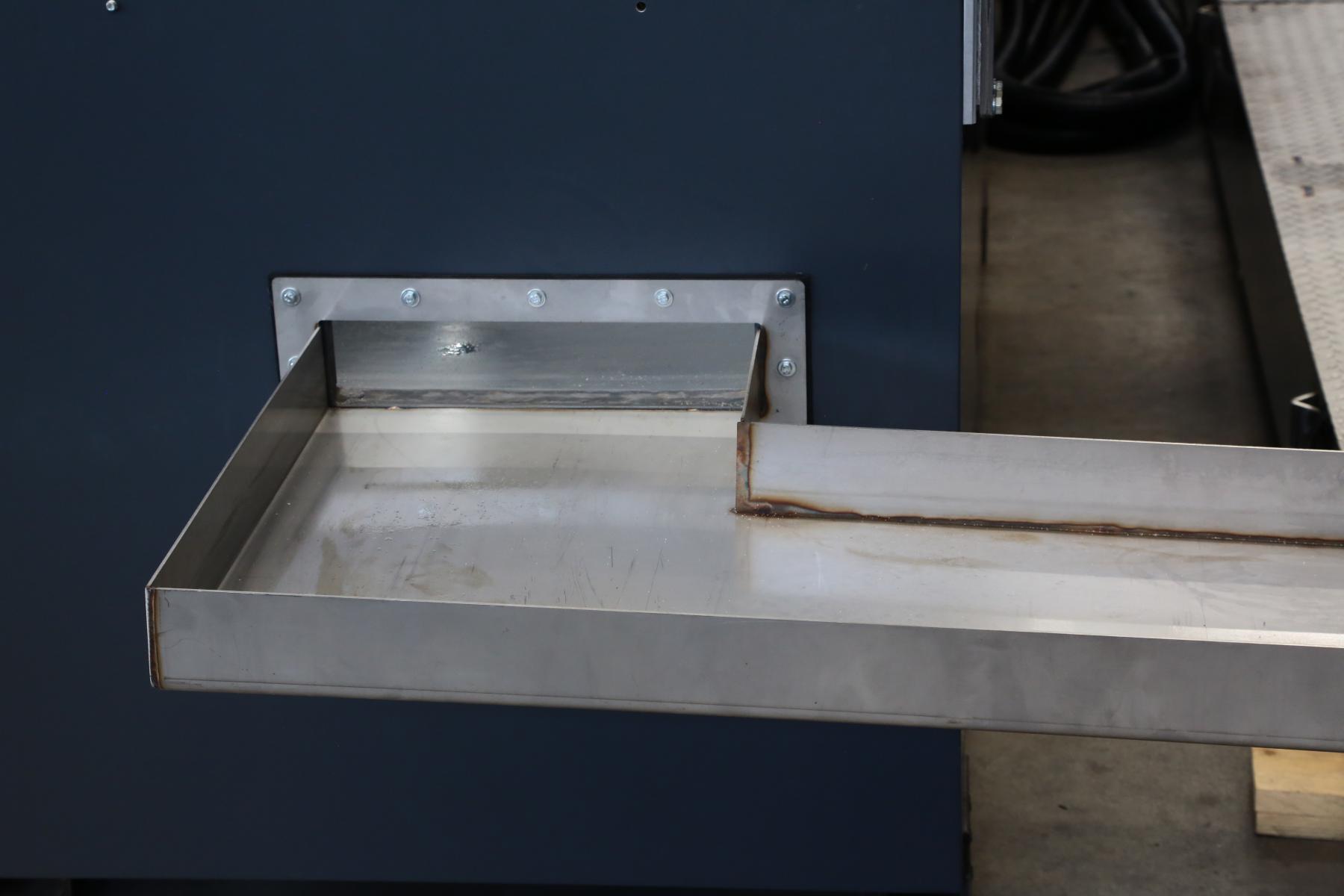

  • External coolant collection tank, complete with an electric pump with a flow rate of 200 L/min.



Upon request

  • Rotating electro-permanent magnetic table, 300 or 350 mm wide.
  • Fixed electro-permanent magnetic table, available in widths of 250, 300, 350, 400, 450 and 500 mm.
  • Fine-polarity magnetic table.
  • 10" Siemens touch-screen controller, complete with electronic handwheel for controlling the grinding wheel’s up and down movement.
  • Segment grinding wheel available in diameters of Ø500 mm and Ø600 mm.
  • Coolant level sensor.
  • Magnetic cleaner rotating-discs.
  • Paper filter with manual or automatic feed.
